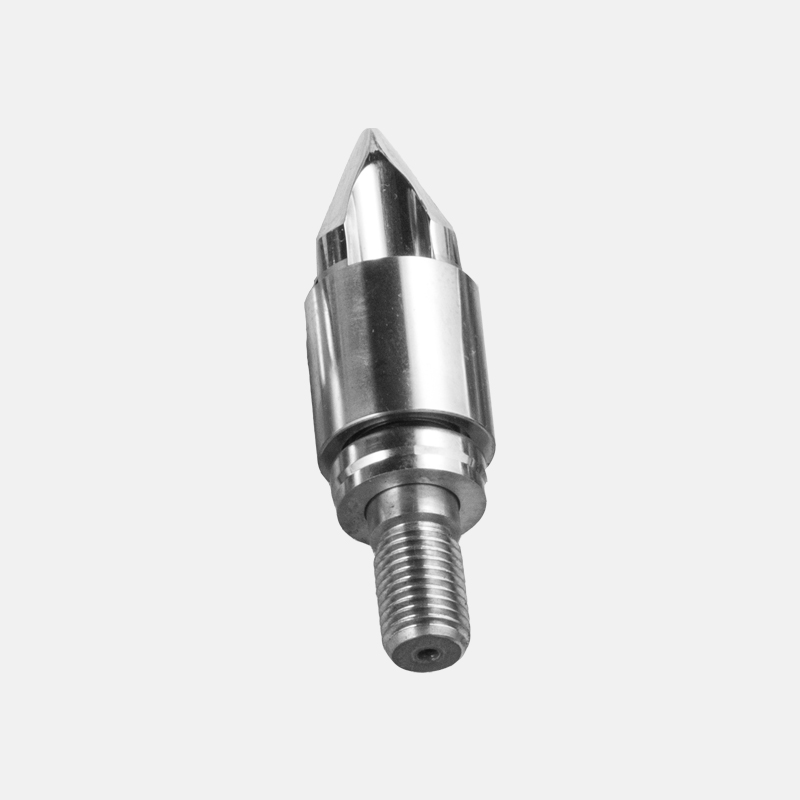

Bimetallic screw barrel nozzle tip for injection molding machine

Location:	China
Business Type:	Manufacturer, Exporter
Brands:
Certificate:
Model:
Terms of payment and delivery:
Minimum order quantity:
Price:	Consultation
Packing details:
Delivery time:
Payment method:

Contact Inquiry PDF Download

PREV：No previous article
NEXT：INJECTION SCREW AND BARREL

FEATURE
SPECIFICATION

Main Base materials	1.38CrMoAlA (SACM645)	Main Alloy Materials	1. Ni-based alloy/Deloro alloy
	2. SKD-61 (Special Tool Steel)		2. Tungsten carbide/Wolfram carbide
	3. 42CrMo (Ultrahigh StrengthSteel)		3. NiCo-based alloy
	4. DC53 (Cold WorkDie Steel)		4. Fe-based alloy
	5. W6Mo5Cr4V2 (High-SpeedToolSteel)		5. Co-based alloy
Processing Technics	1. Heat treatment	Technical parameters	Nitriding layer depth:0.5-0.8mm
	2. Quenching		Nitrided hardness:900-1000HV
	3. Nitriding treatment		Bimetallic layer depth:3 mm
	4. Bimetallic alloy welding for screw		Bimetallic hardness:57~69HRC
	5. Bimetallic alloy centrifugal casting for barrel		Hard-chrome plating hardness after nitriding:≥950HV
	6. Hard-chrome electroplating		Chrome-plating layer depth:0.03-0.09mm
	Linearity of screw:0.015mm		Surface roughness:Ra 0.4

Zhoushan Jingnai Alloy Precision Casting Co.,Ltd.

Zhoushan Jingnai Alloy Precision Casting Co.,Ltd. is famous OEM/ODM Bimetallic screw barrel nozzle tip for injection molding machine Suppliers in China. In the incentive market competition, the essence of resistance by the good faith, service, in the superior quality, and the real price under the premise of the company's technical staff is also time for customers to solve various questions and problems, if you need, we are willing to take the good faith attitude, the cheaper price, high quality common development with you,cost reduction, quality assurance, reputation, timely delivery, this is our company's business objectives
